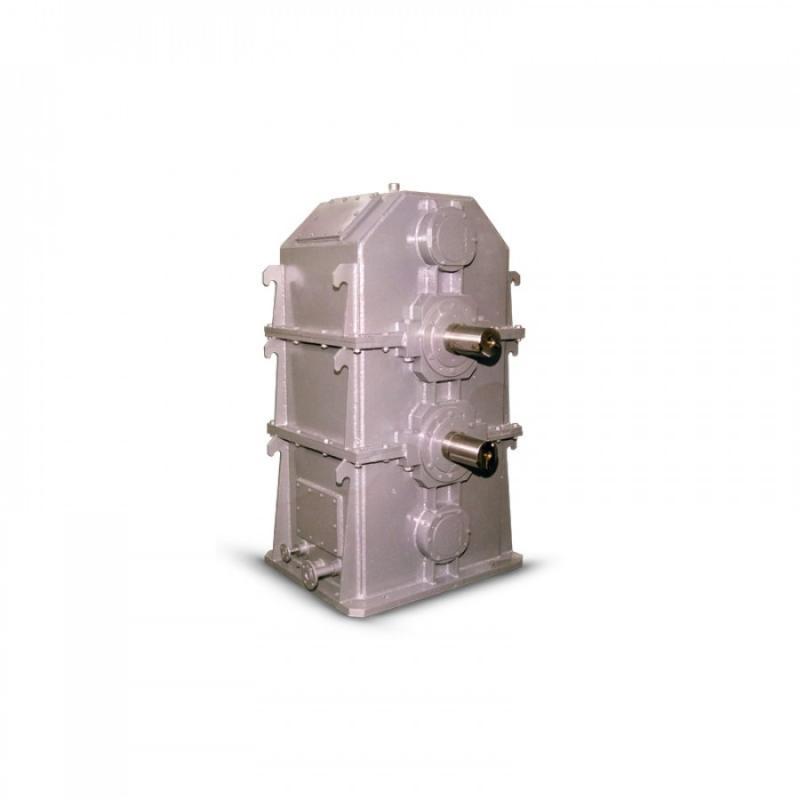

BRIDLE GEARBOX
Admin
-
11 April 2025
14 views
Elecon has developed as special prupose custom built gear box for Bridle Drive and sheet Mill application. This has two input and two output shafts having independent gear trains driving the output shaft in opposite directions with variation in power input. The output shafts are connected to the rolls which stretch the sheet metal before rolling as well as after rolling.
Teeth of pinion and wheels are of double helical type so as to nullify the axial thrust acting on respective shaft. The gears are made from high tensile carburising alloy steel, 17CrNiMo6 as per DIN-17210 case hardened to 60 ± 2HRC and precisely ground to class of accuracy 6 as per DIN 3961 – 63.
The shafts are supported in Antifriction Spherical Roller Bearings of adepquate size to take care of radial loads permitting large degree of freedom against misalignment.
